Prospectus Supplement Filed pursuant to Rule 424(b)(3)
Registration No. 333-145082

PROSPECTUS SUPPLEMENT NO. 04
DATED FEBRUARY 27, 2009
(To Prospectus Dated September 30, 2008)

LEGEND INTERNATIONAL HOLDINGS, INC.

42,840,000 Shares of Common Stock

This prospectus supplement supplements information contained in, and should be read in conjunction with, that certain Prospectus, dated September 30, 2008, of Legend International Holdings, Inc. (the “Company”) as supplemented by Supplement No. 03 thereto dated February 12, 2009, Supplement No. 02 thereto dated November 17, 2008 and Supplement No. 01 thereto dated October 29, 2008. This prospectus supplement is not complete without, and may not be delivered or used except in connection with, the original Prospectus and Supplement No. 01 through 03 thereto. The Prospectus relates to the public sale, from time to time, of up to 42,840,000 shares of our common stock by the selling shareholders identified in the Prospectus.

The information attached to this prospectus supplement modifies and supersedes, in part, the information in the Prospectus, as supplemented. Any information that is modified or superseded in the Prospectus shall not be deemed to constitute part of the Prospectus, except as modified or superseded by this prospectus supplement or Prospectus Supplement No. 01 through 03.

This prospectus supplement includes an update of the development and exploration results on the Company’s D-Tree project.

We may amend or supplement the Prospectus from time to time by filing amendments or supplements as required. You should read the entire Prospectus and any amendments or supplements carefully before you make an investment decision.

The Securities and Exchange Commission and state securities regulators have not approved or disapproved these securities or determined if this Prospectus Supplement (or the original Prospectus dated September 30, 2008) is truthful or complete. Any representation to the contrary is a criminal offense.

The date of this prospectus supplement is February 27, 2009.

1

Introduction

Legend is an exploration company actively exploring and developing phosphate projects in the Georgina Basin in North West Queensland, Australia.

The purpose of this report is to release an update of the exploration drilling and preliminary metallurgical results on the D-Tree project. The majority of holes have results returned from the assay laboratory and will be used to inform any future Probable or Proven Mineral Reserve estimates in conjunction with appropriate mining, metallurgical, economic, marketing, legal, environmental, social and governmental modifying factors.

The D-Tree project is a known phosphate deposit which contains historical non reserve mineralization reported within publically available documentation2. These historical estimates are not Mineral Reserve estimates as defined by SEC Industry Guidelines. Legend has confidence in these reports of non-reserve mineralized material and which have been used as an ‘exploration target’. The drilling results reported in this document confirm historical drilling results (drilled by IMC Development Corporation since 1967) and the presence of a significant phosphate deposit. These results will inform any future estimates of Mineral Reserves.

This report only covers drilling and metallurgical work conducted on EPM14753 (See Figure 1). Other granted landholdings in the D-Tree Project (see Table 1) will be drilled later in this quarter. Legend’s flagship project known as the Lady Annie Phosphate Project is expected to have exploration permits granted in the 3rd quarter of this year and these areas will be aggressively drilled and metallurgically tested at that time.

Tenure

The D-Tree tenement (EPM14753) covers 16,730 acres and was granted on 21 April 2008. The tenement forms part of the D-Tree Project with the other tenements as listed in Table 1.

Tenement
Status
Date

Area (acres)

Legend Interest

EPM14753
Granted
21/04/2008
     16,730       80 %*
EPM15763
Granted
13/03/2008
     63,000       80 %*
EPM17333
Application
5/02/2008
     30,300       80 %*
EPM17446
Application
3/03/2008
     5,580       80 %*
EPM17443
Application
3/03/2008
     3,190       80 %*
EPM17437
Application
3/03/2008
     1,590       80 %*
* Heads of Agreement to form a Joint Venture with Mt Isa Metals Ltd. for Legend having 80% interest and Mt Isa Metals Ltd 20%.


Table 1: Tenement list and standing for D-Tree Project

Legend currently has access to two granted exploration tenements in the area and another four under application for the project. Native title advertisements were placed in local papers in January 2009 for the Thorntonia (EPM17333) and Epsom Creek (EPM17446) tenement applications, which constitutes the beginning of a four month statutory advertising timeframe before the exploration permit can be granted.

Access

During the second half of 2008, Legend embarked on an extensive drilling program of the D-Tree deposit which is located 125 kilometers from the regional centre of Mt Isa. Site access is relatively easily achieved  by driving 110 kilometers along the sealed Barkly Highway, followed by driving 40 kilometres along the sealed Thorntonia-Yelvertoft Road. The last part is 22 kilometres along an existing and developed access road (See Figure 1).

1 Joint Ore Reserve Committee Guide for the reporting of Exploration Results, Mineral Resources and Ore Reserves. This Guide is also comparable to the Society of Mining, Metallurgy and Exploration, Inc. (SME) 2005 guide for reporting Exploration Results, Mineral Resources, and Mineral Reserves.
2 Denaro, T, Ramsden, C, & Brown, D. ‘Queensland Minerals A Summary of Major Mineral Resources, Mines and Projects, 4th Edition). Queensland Government Department of Mines & Energy, 2007

2

GRAPHIC

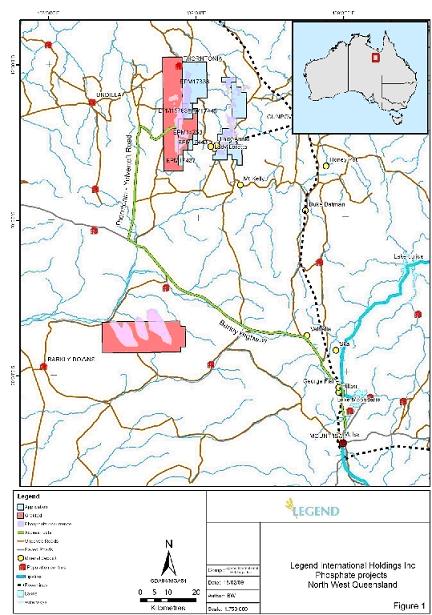

Figure 1: Access to the D-Tree Deposit

3

Geology

The D-Tree deposit comprises Cambrian Sediments and sits on the eastern edge of the regional Georgina Basin. The mineralization that forms the phosphate deposit is known as phosphorite which is a marine sedimentary unit within the Beetle Creek Formation. Underlying the Beetle Creek Formation is the Mount Hendry Formation which is made up of conglomerates, siltstones and sandstones. In some areas the Beetle Creek Formation unconformably overlies an un-named Pre-Cambrian unit that is easily identified in geological logging. Overlying the Beetle Creek Formation is either the Inca Creek formation made predominately of chert rich siltstones, or the Thorntonia Limestone.

All drilling information has been recorded and logged by Legend’s geologists. This information will form part of a detailed geological model of the deposit.

Drilling and Sampling Methodology

The phosphate drilling program was drilled on a nominal 300 metre by 300 metre grid pattern. Some areas, such as the Galah Creek area were drilled on a 100 metre by 100 metre spacing to better define the areas of higher grade.

Three types of drilling have been conducted in the deposit to date. Reverse Circulation (RC) drilling is used as the base for all results reported in this document and is the most extensive type of drilling. The second type is Diamond drilling, which mainly consists of holes to twin current RC drilling for quality control purposes. A third type, Sonic drilling was also used to obtain larger samples which are appropriate for metallurgical sampling and testing. Sonic drilling uses an ultra-high frequency oscillating drill bit to cut through the rock giving full sample recovery as there is no high pressure air or water required in the process.

All RC samples were collected using a 3-tier riffle splitter over 1 meter intervals, yielding a 2-3 kg sample for subsequent assaying. A second split has also been collected from some high grade intervals to use in quality assurance of the sampling process. Assay results from all such field duplicate samples received so far show very good correlation between assays from original and duplicate samples.

The RC holes drilled have been completed using either a 4.5” (114.3mm) or 5” (127mm) drill bit. All Diamond core has been drilled at HQ triple tube size and Sonic core was drilled at 6” (152mm) drill bit. Sample recoveries for the diamond drilling have been logged and recorded.

All phosphate samples have been submitted to either one of two commercial laboratories located in either Mt Isa or Brisbane. The analytical technique used was fused bead XRF, but some samples were also tested using a fused bead ICP method for comparison. All samples were analyzed for P2O5, Al2O3, Fe2O3, MgO, CaO and SiO2.

A series of pulp duplicates were taken at the preparation stage to test for laboratory accuracy and precision with all results showing good correlation and within acceptable limits. A series of matrix matched phosphate reference standards have also been submitted with the samples to ensure accuracy and precision of assaying. The results of these standards came back within acceptable limits.

Results

Legend has received results for 470 of the 476 RC holes drilled. A total of 12,520 metres of drilling is complete with results received so far totalling approximately 12,100 assays.

For all RC drilling a total of more than 250 holes have an intercept of greater than 8% P2O5. As some holes have up to 3 separate intercepts at this grade there is a total of 332 intervals representing three main identified zones within the Project area (see Figure 2). All intercept results were calculated with an 8% minimum P2O5 cut, minimum 2 metre intercept and maximum of 2 metres contiguous internal dilution and are listed in Appendix A.

4

Table 3 shows all significant intercepts of greater than 25% P2O5. All drilling has been done with vertical holes which, as the deposit is nominally flat lying gives a true width for each mineralized zone. These zones were calculated using a minimum width of two metres and a maximum internal dilution of two contiguous metres. See Appendix A for collar coordinates of these holes. This table represents the drill intercepts that have the greatest potential for delivering high grade direct shipping ore or material that requires little dry beneficiation through crushing, screening or magnetic separation. These high grade zones are clustered in two main areas, North D-Tree and Galah Creek as depicted in figure 2.

Two east-west cross sections through the deposit are also shown in figure 3. The section lines chosen are depicted on figure 2. The sections show the mineralization continuity over east-west widths of 2-3 kilometres and figure 2 shows the continuity in the north-south direction of well over 10 km. These diagrams clearly show the massive extent of the D-Tree mineralization and therefore the approximate magnitude of an exploration target that may exist within any given part of the overall phosphate deposit area. The deposit is known from historical drilling to extend in north, south and west directions into other landholdings granted or under application by Legend which combine to form the D-Tree project. The D-Tree project currently has a Heads of Agreement in place to form a Joint Venture with Mt Isa Metals Ltd whereby Legend will hold an 80% interest.

5

Hole_ID

From
(m)

To
(m)

Width
(m)
       P2O5 %
Fe2O3
%

Al2O3 %
       *R2O3 %
MgO %

SiO2 %

CaO %

CaO:P2O5 Ratio

DTRC0034
     1       3       2       25.80       5.80       2.05       7.85       0.15       27.80       34.95       1.35
DTRC0053
     2       5       3       30.67       5.50       2.50       8.00       0.10       6.87       40.97       1.34
DTRC0076
     6       9       3       28.60       5.50       3.37       8.87       -0.03       18.43       38.23       1.34
DTRC0076
     15       17       2       30.50       2.35       2.05       4.40       0.00       18.85       41.35       1.36
DTRC0083
     27       29       2       33.85       1.50       1.75       3.25       0.20       11.18       46.10       1.36
DTRC0090
     10       12       2       26.45       4.35       2.85       7.20       0.25       23.45       36.30       1.37
DTRC0098
     9       11       2       32.30       0.35       2.00       2.35       0.20       15.34       44.20       1.37
DTRC0112
     27       30       3       28.87       1.77       2.10       3.87       0.13       23.00       39.43       1.37
DTRC0113
     13       15       2       27.60       4.05       2.95       7.00       0.20       22.15       37.50       1.36
DTRC0127
     20       23       3       27.87       1.87       4.23       6.10       0.23       23.70       37.77       1.36
DTRC0132
     15       17       2       29.55       2.85       2.69       5.54       0.17       20.45       39.85       1.35
DTRC0133
     13       16       3       27.20       10.73       2.97       13.70       0.20       17.13       36.83       1.35
DTRC0133
     28       31       3       26.93       5.97       3.60       9.57       0.23       20.83       36.70       1.36
DTRC0139
     23       25       2       26.75       4.45       2.85       7.30       0.25       24.10       36.30       1.36
DTRC0147
     8       12       4       30.22       0.45       2.83       3.28       0.20       19.95       41.02       1.36
DTRC0148
     6       8       2       27.50       2.55       4.05       6.60       0.20       22.70       37.30       1.36
DTRC0157
     12       14       2       33.65       2.70       3.04       5.74       0.12       9.35       45.90       1.36
DTRC0158
     14       16       2       29.20       5.23       2.66       7.89       0.14       18.65       39.45       1.35
DTRC0188
     4       8       4       29.48       1.80       4.80       6.60       0.52       18.29       40.15       1.36
DTRC0212
     17       20       3       32.30       14.43       0.77       15.20       0.03       2.93       43.37       1.34
DTRC0244
     4       6       2       32.55       0.90       2.00       2.90       0.15       15.65       43.85       1.35
DTRC0258
     18       20       2       34.55       4.35       2.20       6.55       0.00       5.87       45.85       1.33
DTRC0292
     14       16       2       30.60       7.00       3.30       10.30       0.05       12.21       40.70       1.33
DTRC0300
     7       9       2       30.40       9.26       2.34       11.60       0.13       11.98       41.25       1.36
DTRC0302
     7       9       2       28.40       12.55       4.38       16.93       0.17       10.86       37.45       1.32
DTRC0338
     16       18       2       26.80       6.17       3.93       10.10       0.20       21.15       36.05       1.35
DTRC0339
     11       13       2       27.65       4.28       5.70       9.98       0.18       19.00       37.20       1.35
DTRC0352
     13       16       3       34.47       1.77       2.01       3.78       0.07       11.30       46.70       1.35
DTRC0375
     13       15       2       28.20       16.30       2.30       18.60       0.15       10.01       37.60       1.33
DTRC0384
     19       21       2       34.75       5.21       1.53       6.74       0.10       6.02       47.85       1.38
DTRC0387
     8       10       2       28.05       23.02       2.20       25.22       0.15       3.09       37.60       1.34
DTRC0432
     2       4       2       26.40       5.78       3.40       9.18       0.20       22.95       35.75       1.35
DTRC0451
     14       16       2       33.55       1.20       1.61       2.81       0.07       14.73       45.50       1.36
DTRC0461
     3       5       2       27.95       17.40       1.51       18.91       0.21       8.11       38.15       1.36
DTRC0463
     11       15       4       35.92       6.54       1.29       7.83       0.10       3.54       48.60       1.35
DTRC0472
     13       15       2       31.35       12.46       1.29       13.75       0.13       6.26       43.10       1.37
Min
                             25.80       0.35       0.77       2.35       -0.03       2.93       34.95       1.32
Max
                             35.92       23.02       5.70       25.22       0.52       27.80       48.60       1.38
Weighted Average
                             30.02       5.95       2.51       8.75       0.15       16.90       39.36       1.35

Table 3: Significant intercepts >25% P2O5, calculated using 25% P2O5 cut, minimum width of 2 metres and maximum contiguous dilution of 2 metres. *R2O5 = Fe2O3 + Al2O3

6

GRAPHIC

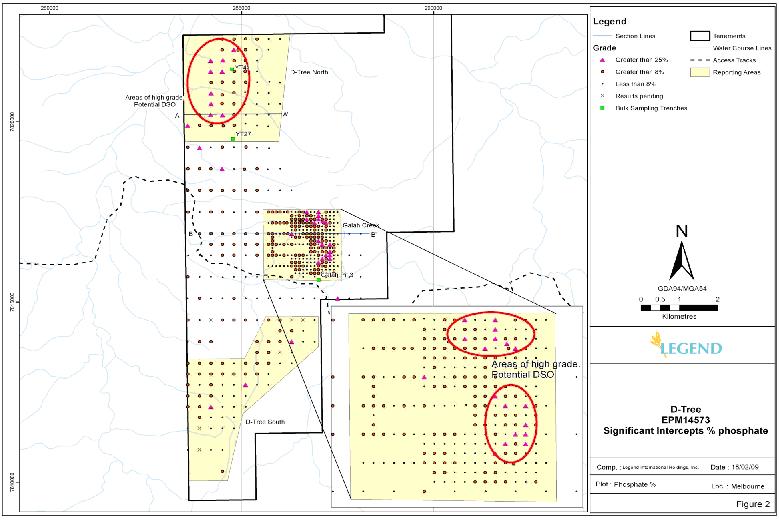

Figure 2: Map showing significant intercept locations for the D-Tree Project


7


GRAPHIC

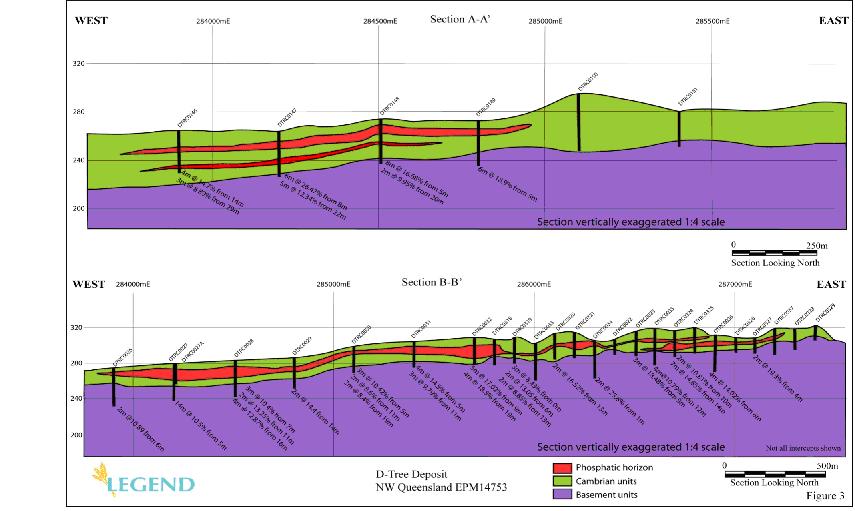

Figure 3: Cross-Sections through D-Tree North (A-A’) and Galah Creek (B-B’)


8


Metallurgy

Five large samples of phosphate rock were collected at D-Tree from two historic trenches and one small pit, YT-27, YT-141 and Galah Pit 3; these sites can be seen on figure 2. These trenches and pits were excavated in the 1970’s by IMC Development Corporation for beneficiation testwork. The Legend samples were collected using hand tools (jack hammer and picks) and weighed around 400kg each when shipped.

These five samples are from 3 localised areas within the D-Tree deposit as shown on figure 2 and are not necessarily representative of the entire deposit.

Phosphate rock beneficiation tests on YT27 and YT141 samples have been completed at bench scale using standard comminution and flotation techniques. The beneficiation process consisted of crushing, grinding, scrubbing to remove the -20 micron fraction and flotation.  A coarse fraction consisting of particle size - -1.18mm to +150 micron and a fine fraction of -150 micron to +20 micron were floated separately giving excellent concentrate grades.  Results are tabulated below.


Concentrate Sample


YT-27

YT-27(Fe)

YT-141

YT-141(Fe)

Constituent

Coarse

Fine

Coarse

Fine

Coarse

Fine

Coarse

Fine

P2O5 %       32.13       34.10       33.66       33.65       38.61       36.04       38.95       36.09
Fe2O3 %
       0.84       0.40       0.53       0.37       0.24       0.58       1.61       4.96
Acid Insol %
       12.20       10.12       13.16       8.06       3.29       6.20       2.29       4.17
Flotation Recovery %
       67.6       76.0       89.9       87.3       69.1       91.3       41.5       89.2

Table 2: Results from metallurgical test-work

Legend is currently assessing methods of recovering the ultrafine particle fraction (minus 20 micron) using flotation, so that the entire range of particle sizes may be considered as feed to the processing plant. Further test-work is planned using specialised ultrafine particle flotation techniques to increase the phosphate grade and recovery to the concentrate, while optimising iron rejection.

The sample from Galah Creek (Galah Pit 3 on figure 2 below) is an example of potential direct shipping ore.  The sample required no beneficiation and when assayed gave results of 38.7% P2O5 and 1.4% combined Fe2O3 and Al2O3.

In partial areas of the D-Tree deposit the elements of iron (Fe2O3) and aluminium (Al2O3) have been identified (in consultation with Legends customer and partner IFFCO (Indian Farmers Fertiliser Cooperative)) as possible deleterious elements which may affect the phosphoric acid manufacturing process. The levels of these elements need to be within a certain range and the maximum and minimum limits will be identified in future phosphoric acid tests. Control of these contaminants will be addressed through either selective mining such as areas in part of North D-Tree, which have been identified as having lower levels of these elements, or by using common dry beneficiation techniques such as crushing, screening, ore sorting or magnetic separation. Each phosphate rock deposit around the world is unique and will have its own limits on the levels of deleterious elements which can be acceptable in the phosphoric acid manufacturing process. Individual phosphoric acid plants will also have their own unique specifications. Legend has an advantage in this regard as it has formed a clear expectation as to which plant will be taking its phosphate rock which will be IFFCO’s Paradeep Unit in India. This means testwork on the rock in the near term will be aimed at meeting the Paradeep plants individual requirements.

Trace elements and other impurities such as (but not limited to) cadmium, uranium, lead, fluorine, sodium and magnesium have been tested throughout the deposit and found to exist in quantities that are insignificant to both Legend’s customer and partner IFFCO and in general when compared to other phosphate rock from around the world.





Future Work

Legend will use these results to develop an estimate of the non-reserve mineralized deposit, that is compliant with Australian JORC 2004 and United States SME 2005 guidelines. This estimate will form part of the preliminary work that will be used to inform any future estimates of Probable or Proven Mineral Reserves for the D-Tree Project in conjunction with appropriate mining, metallurgical, economic, marketing, legal, environmental, social and governmental modifying factors. Other work will include further drilling around some of the higher grade areas to test for possible direct shipping ore (DSO) or material that requires little dry beneficiation such as crushing, screening or magnetic separation.

Review

This work has been reviewed by Stephen Hyland - BSc (Geology), MAusIMM, GAA, CIMM who is a competent person as required under the JORC and SME guidelines.

Stephen Hyland has over 20 years experience in exploration geology and resource modelling and has worked extensively within Australia as well as offshore in Africa, Eastern and Western Europe, Central and South East Asia, modelling base metals, gold, precious metals and industrial minerals. Stephen’s extensive resource modelling experience commenced whilst working with Eagle Mining Corporation NL in the diverse and complex Yandal Gold Province where for three and half years he was their Principal Resource Geologist. Whilst the majority of his time there had been developing the historically successful Nimary Mine, he also assisted the regional exploration group with preliminary resource assessment of Eagle’s numerous exploration and mining leases. Since 1997 Stephen has been a full time Consultant with the minerals consulting firm Ravensgate where he is responsible for all geological modelling and reviews, mineral deposit evaluation, computational modelling, resource estimation, resource reporting for ASX / JORC and other regulatory compliance areas. Primarily Stephen specialises in Geological and Resource Block Modelling generally with the widely used MedSystem / Minesight 3D mine-evaluation and design software. Stephen Hyland holds the relevant qualifications and professional associations required by the ASX, JORC and ValMin Codes in Australia. He is a Qualified Person under the rules of the CIMM and NI43-101.

Forward-Looking Statements

Forward-looking statements in this prospectus supplement release are made pursuant to the “safe harbour” provisions of the Private Securities Litigation Reform Act of 1995. Investors are cautioned that such forward-looking statements involve risks and uncertainties including, without limitation, the risks of exploration and development stage projects, risks associated with environmental and other regulatory matters, mining risks and competition and the volatility of mineral prices. Actual results and timetables could vary significantly. Additional information about these and other factors that could affect the Company’s business is set forth in the Prospectus and other filings with the Securities and Exchange Commission.






APPENDIX A





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0001
     283594       7818104
6m @ 15.86% from 30m
D-Tree
DTRC0001
     283594       7818104
3m @ 10.43% from 40m
D-Tree
DTRC0002
     283901       7818098
2m @ 17.7% from 4m
D-Tree
DTRC0002
     283901       7818098
3m @ 15.33% from 14m
D-Tree
DTRC0003
     284199       7818099
6m @ 17.87% from 11m
D-Tree
DTRC0003
     284199       7818099
5m @ 13.22% from 20m
D-Tree
DTRC0003
     284199       7818099
2m @ 12.59% from 29m
D-Tree
DTRC0004
     284499       7818097
12m @ 12.77% from 13m
D-Tree
DTRC0005
     284798       7818099
4m @ 11.42% from 0m
D-Tree
DTRC0005
     284798       7818099
7m @ 13.08% from 12m
D-Tree
DTRC0005
     284798       7818099
2m @ 11.99% from 22m
D-Tree
DTRC0006
     285400       7818099
11m @ 10.07% from 8m
D-Tree
DTRC0009
     285102       7818101
8m @ 13.31% from 0m
D-Tree
DTRC0009
     285102       7818101
5m @ 14.62% from 13m
D-Tree
DTRC0009
     285102       7818101
3m @ 12.66% from 23m
D-Tree
DTRC0011
     283603       7817497
4m @ 11.76% from 22m
D-Tree
DTRC0013
     284200       7817500
2m @ 11.7% from 17m
D-Tree
DTRC0013
     284200       7817500
4m @ 13.28% from 22m
D-Tree
DTRC0014
     284498       7817500
3m @ 9.69% from 8m
D-Tree
DTRC0017
     285401       7817498
2m @ 10.6% from 12m
D-Tree
DTRC0018
     285698       7817501
5m @ 9.9% from 15m
Galah Creek
DTRC0019
     285999       7817503
3m @ 11.74% from 9m
Galah Creek
DTRC0019
     285999       7817503
2m @ 12.8% from 16m
Galah Creek
DTRC0021
     286599       7817497
2m @ 13.09% from 7m
Galah Creek
DTRC0023
     287197       7817498
3m @ 18.48% from 9m
Galah Creek
DTRC0026
     283900       7816900
2m @ 10.89% from 6m
D-Tree
DTRC0027
     284200       7816900
14m @ 10.5% from 5m
D-Tree
DTRC0028
     284500       7816900
3m @ 10.4% from 7m
D-Tree
DTRC0028
     284500       7816900
2m @ 13.25% from 11m
D-Tree
DTRC0028
     284500       7816900
4m @ 12.87% from 16m
D-Tree
DTRC0029
     284800       7816900
2m @ 14.4% from 14m
D-Tree
DTRC0030
     285100       7816900
3m @ 10.42% from 5m
D-Tree
DTRC0030
     285100       7816900
2m @ 8.6% from 11m
D-Tree
DTRC0030
     285100       7816900
2m @ 8.4% from 19m
D-Tree
DTRC0031
     285400       7816900
4m @ 14.5% from 5m
D-Tree
DTRC0031
     285400       7816900
3m @ 9.79% from 11m
D-Tree
DTRC0032
     285700       7816900
5m @ 17.02% from 9m
Galah Creek
DTRC0032
     285700       7816900
4m @ 18.5% from 19m
Galah Creek





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0034
     286300       7816900   3m @ 20.46% from 1m inc 2m @ 25.8% from 1m
Galah Creek
DTRC0035
     286600       7816900
4m @ 10.79% from 12m

Galah Creek
DTRC0036
     286900       7816900
4m @ 14.02% from 8m

Galah Creek
DTRC0044
     284500       7816300
4m @ 10.1% from 1m

D-Tree
DTRC0045
     284800       7816300
7m @ 12.06% from 9m

D-Tree
DTRC0047
     285400       7816300
2m @ 14.58% from 7m

D-Tree
DTRC0048
     285700       7816300
3m @ 19.3% from 15m

Galah Creek
DTRC0051
     286600       7816300
2m @ 13.36% from 10m

Galah Creek
DTRC0053
     287200       7816300   5m @ 27.56% from 2m inc 3m @ 30.67% from 2m
Galah Creek
DTRC0057
     283600       7815700
2m @ 8.83% from 11m

D-Tree
DTRC0066
     286300       7815700
6m @ 14.38% from 0m

Galah Creek
DTRC0073
     283601       7818701
4m @ 12.83% from 39m

D-Tree
DTRC0073
     283601       7818701
2m @ 12.5% from 51m

D-Tree
DTRC0074
     283901       7818700
2m @ 9.82% from 30m

 D-Tree
DTRC0075
     284196       7818702
4m @ 17.42% from 5m

D-Tree
DTRC0076
     284492       7818700   14m @ 21.31% from 4m inc 2m @ 30.5% from 15m
D-Tree
DTRC0078
     285074       7818691
3m @ 11.91% from 6m

D-Tree
DTRC0079
     285401       7818700
4m @ 10.62% from 0m

D-Tree
DTRC0082
     283600       7819300
6m @ 15.47% from 33m

D-Tree
DTRC0083
     283904       7819287   7m @ 17.25% from 26m inc 2m @ 33.85% from 27m
D-Tree
DTRC0083
     283904       7819287
5m @ 9.79% from 38m

D-Tree
DTRC0085
     284498       7819304
3m @ 16.6% from 9m

D-Tree
DTRC0085
     284498       7819304
4m @ 17.63% from 23m

D-Tree
DTRC0087
     285112       7819307
3m @ 11.77% from 0m

D-Tree
DTRC0090
     283597       7819895   5m @ 17.78% from 10m inc 2m @ 26.45% from 10m
North D-Tree
DTRC0091
     283904       7819902
8m @ 13.42% from 15m

North D-Tree
DTRC0092
     284203       7819892
5m @ 16.5% from 13m

North D-Tree
DTRC0092
     284203       7819892
4m @ 9.04% from 28m

North D-Tree
DTRC0093
     284518       7819888
7m @ 12.8% from 13m

North D-Tree
DTRC0093
     284518       7819888
3m @ 13.17% from 24m

North D-Tree
DTRC0094
     284805       7819901
2m @ 13.4% from 6m

North D-Tree
DTRC0094
     284805       7819901
2m @ 15.9% from 17m

North D-Tree
DTRC0098
     284204       7820503   19m @ 17.66% from 9m inc 2m @ 32.3% from 9m
North D-Tree
DTRC0099
     284485       7820506
2m @ 14.15% from 2m

North D-Tree
DTRC0099
     284485       7820506
5m @ 12.35% from 10m

North D-Tree
DTRC0100
     284799       7820500
2m @ 16% from 4m

North D-Tree
DTRC0100
     284799       7820500
2m @ 9.63% from 7m

North D-Tree
DTRC0100
     284799       7820500
5m @ 11.28% from 12m

North D-Tree
DTRC0105
     284204       7821092
4m @ 20.79% from 12m

North D-Tree





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0105
     284204       7821092
5m @ 16.19% from 24m

North D-Tree
DTRC0106
     284493       7821101
4m @ 18.73% from 23m

North D-Tree
DTRC0107
     284800       7821100
6m @ 17.72% from 11m

North D-Tree
DTRC0108
     285106       7821102
10m @ 17.67% from 0m

North D-Tree
DTRC0112
     284196       7821699
3m @ 19.9% from 14m

North D-Tree
DTRC0112
     284196       7821699   5m @ 22.24% from 25m inc 3m @ 28.87% from 27m
North D-Tree
DTRC0113
     284512       7821711   4m @ 19.55% from 13m inc 2m @ 27.6% from 13m
North D-Tree
DTRC0113
     284512       7821711
9m @ 14.76% from 26m

North D-Tree
DTRC0114
     284802       7821701
4m @ 11.12% from 19m

North D-Tree
DTRC0114
     284802       7821701
3m @ 14.07% from 28m

North D-Tree
DTRC0115
     285096       7821708
2m @ 10.75% from 3m

North D-Tree
DTRC0115
     285096       7821708
4m @ 18.25% from 15m

North D-Tree
DTRC0115
     285096       7821708
4m @ 11.23% from 23m

North D-Tree
DTRC0119
     284501       7822299
3m @ 10.21% from 12m

North D-Tree
DTRC0119A
     284503       7822301
2m @ 13.45% from 13m

North D-Tree
DTRC0119A
     284503       7822301
2m @ 16.25% from 24m

North D-Tree
DTRC0120
     284801       7822299
2m @ 12.7% from 8m

North D-Tree
DTRC0120
     284801       7822299
6m @ 15.66% from 16m

North D-Tree
DTRC0121
     285101       7822304
6m @ 15.19% from 1m

North D-Tree
DTRC0121
     285101       7822304
4m @ 17.93% from 17m

North D-Tree
DTRC0122
     285402       7822298
6m @ 18.32% from 0m

North D-Tree
DTRC0126
     284491       7822003
8m @ 13.24% from 14m

North D-Tree
DTRC0127
     284800       7822000
2m @ 13.2% from 9m

North D-Tree
DTRC0127
     284800       7822000   9m @ 16.88% from 16m inc 3m @ 27.87% from 20m
North D-Tree
DTRC0128
     285096       7822002
6m @ 20.48% from 0m

North D-Tree
DTRC0128A
     284906       7822000
5m @ 16.86% from 1m

North D-Tree
DTRC0128A
     284906       7822000
6m @ 16.41% from 14m

North D-Tree
DTRC0132
     284198       7821397   5m @ 20.78% from 15m inc 2m @ 29.55% from 15m
North D-Tree
DTRC0132
     284198       7821397
7m @ 14.34% from 25m

North D-Tree
DTRC0133
     284494       7821396   5m @ 22.12% from 13m inc 3m @ 27.2% from 13m
North D-Tree
DTRC0133
     284494       7821396   8m @ 19.67% from 24m inc 3m @ 26.93% from 28m
North D-Tree
DTRC0134
     284807       7821402
8m @ 13.22% from 14m

North D-Tree
DTRC0135
     285090       7821402
4m @ 11.36% from 0m

North D-Tree
DTRC0139
     284204       7820793
5m @ 18.86% from 6m

North D-Tree
DTRC0139
     284204       7820793   7m @ 20.97% from 21m inc 2m @ 26.75% from 23m
North D-Tree
DTRC0140
     284495       7820751
2m @ 12.15% from 4m

North D-Tree
DTRC0140
     284495       7820751
12m @ 12.75% from 9m

North D-Tree
DTRC0141
     284800       7820805
11m @ 13.02% from 3m

North D-Tree
DTRC0146
     283900       7820193
4m @ 14.7% from 14m

North D-Tree





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0146
     283900       7820193
3m @ 8.89% from 29m

North D-Tree
DTRC0147
     284198       7820198   6m @ 26.47% from 8m inc 4m @ 30.22% from 8m
North D-Tree
DTRC0147
     284198       7820198
5m @ 12.34% from 22m

North D-Tree
DTRC0148
     284505       7820189   8m @ 16.68% from 5m inc 2m @ 27.5% from 6m
North D-Tree
DTRC0148
     284505       7820189
2m @ 9.95% from 20m

North D-Tree
DTRC0149
     284800       7820200
6m @ 18.9% from 5m

North D-Tree
DTRC0154
     286000       7817200
3m @ 11.68% from 17m

Galah Creek
DTRC0154
     286000       7817200
8m @ 9.12% from 21m

Galah Creek
DTRC0155
     286300       7817200
2m @ 9.29% from 16m

Galah Creek
DTRC0155
     286300       7817200
4m @ 11.01% from 22m

Galah Creek
DTRC0156
     286600       7817200
11m @ 10.64% from 9m

Galah Creek
DTRC0157
     286900       7817200   4m @ 24.17% from 11m inc 2m @ 33.65% from 12m
Galah Creek
DTRC0158
     287200       7817200
2m @ 29.2% from 14m

Galah Creek
DTRC0159
     284200       7816600
3m @ 10.03% from 10m

D-Tree
DTRC0160
     284500       7816600
8m @ 9.33% from 2m

D-Tree
DTRC0161
     284800       7816600
2m @ 9.37% from 4m

D-Tree
DTRC0161
     284800       7816600
4m @ 10.48% from 13m

D-Tree
DTRC0162
     285100       7816600
4m @ 9.22% from 3m

D-Tree
DTRC0162
     285100       7816600
4m @ 10.99% from 11m

D-Tree
DTRC0163
     285400       7816600
5m @ 10.4% from 11m

D-Tree
DTRC0163
     285400       7816600
8m @ 11.28% from 19m

D-Tree
DTRC0164
     285700       7816600
3m @ 11.31% from 8m

Galah Creek
DTRC0164
     285700       7816600
2m @ 13.3% from 21m

Galah Creek
DTRC0166
     286300       7816600
2m @ 17.81% from 6m

Galah Creek
DTRC0168
     286900       7816600
2m @ 18.1% from 1m

Galah Creek
DTRC0171
     286300       7816000
2m @ 14.1% from 1m

Galah Creek
DTRC0172
     286600       7816000
2m @ 13.52% from 4m

Galah Creek
DTRC0174
     287181       7815989
3m @ 20.1% from 5m

Galah Creek
DTRC0176
     283900       7815100
4m @ 16.63% from 13m

D-Tree
DTRC0179
     284800       7815100
5m @ 11.11% from 7m

D-Tree
DTRC0188
     287500       7815100   7m @ 26.21% from 2m inc 4m @ 29.48% from 4m
D-Tree
DTRC0191
     283600       7814500
6m @ 13.6% from 5m

D-Tree
DTRC0194
     284500       7814500
3m @ 16.03% from 11m

D-Tree
DTRC0195
     284800       7814500
2m @ 19.65% from 10m

D-Tree
DTRC0196
     285100       7814500
3m @ 10.12% from 5m

D-Tree
DTRC0198
     285700       7814500
4m @ 9.82% from 4m

D-Tree
DTRC0199
     286000       7814500
3m @ 8.1% from 3m

D-Tree
DTRC0203
     286000       7814200
2m @ 10.49% from 2m

South D-Tree
DTRC0203
     286000       7814200
8m @ 14.63% from 6m

South D-Tree





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0204
     286300       7814200
13m @ 15.06% from 8m

South D-Tree
DTRC0207
     283900       7813900
5m @ 13.18% from 4m

D-Tree
DTRC0208
     284200       7813900
4m @ 10.8% from 4m

D-Tree
DTRC0208
     284200       7813900
2m @ 10.27% from 13m

D-Tree
DTRC0209
     285400       7813900
8m @ 13.82% from 3m

South D-Tree
DTRC0210
     285700       7813900
4m @ 15.43% from 2m

South D-Tree
DTRC0211
     286000       7813900
10m @ 15.58% from 8m

South D-Tree
DTRC0212
     286300       7813900   6m @ 22% from 15m inc 3m @ 32.3% from 17m
South D-Tree
DTRC0215
     285400       7813600
6m @ 14.91% from 2m

South D-Tree
DTRC0216
     285698       7813600
7m @ 15.54% from 4m

South D-Tree
DTRC0219
     283600       7813300
5m @ 14.56% from 1m

South D-Tree
DTRC0220
     283900       7813300
6m @ 14.35% from 7m

South D-Tree
DTRC0221
     284200       7813300
6m @ 11.91% from 7m

South D-Tree
DTRC0222
     284500       7813300
8m @ 13.41% from 7m

South D-Tree
DTRC0224
     285100       7813300
12m @ 11.56% from 7m

South D-Tree
DTRC0225
     285400       7813300
4m @ 10.62% from 4m

South D-Tree
DTRC0226
     285700       7813300
14m @ 16.73% from 0m

South D-Tree
DTRC0231
     283600       7813000
7m @ 14.59% from 9m

South D-Tree
DTRC0232
     283900       7813000
9m @ 13.29% from 10m

South D-Tree
DTRC0233
     284200       7813000
7m @ 16.31% from 9m

South D-Tree
DTRC0234
     284500       7813000
6m @ 14.12% from 8m

South D-Tree
DTRC0235
     284800       7813000
5m @ 13.4% from 5m

South D-Tree
DTRC0235
     284800       7813000
5m @ 15.98% from 14m

South D-Tree
DTRC0236
     285100       7813000
12m @ 12.49% from 2m

South D-Tree
DTRC0237
     285400       7813000
4m @ 15.45% from 4m

South D-Tree
DTRC0239
     283600       7812700
6m @ 11.93% from 8m

South D-Tree
DTRC0241
     284200       7812700
10m @ 15.27% from 8m

South D-Tree
DTRC0244
     285101       7812707   7m @ 18.6% from 0m inc 2m @ 32.55% from 4m
South D-Tree
DTRC0250
     283600       7812400
5m @ 16.42% from 8m

South D-Tree
DTRC0251
     283900       7812400
6m @ 14.71% from 9m

South D-Tree
DTRC0252
     284200       7812400
2m @ 13.05% from 14m

South D-Tree
DTRC0256
     283600       7812100
4m @ 15.43% from 17m

South D-Tree
DTRC0257
     283900       7812100
4m @ 11.6% from 7m

South D-Tree
DTRC0258
     284200       7812100   5m @ 20.81% from 15m inc 2m @ 34.55% from 18m
South D-Tree
DTRC0266
     283900       7811800
10m @ 13.82% from 6m

D-Tree
DTRC0288
     284500       7810300
4m @ 8.98% from 5m

D-Tree
DTRC0290
     286180       7817200
3m @ 9.87% from 7m

Galah Creek
DTRC0290
     286180       7817200
11m @ 11.99% from 17m

Galah Creek
DTRC0291
     286540       7817268
9m @ 14.92% from 11m

Galah Creek





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0291
     286540       7817268
2m @ 11.5% from 23m

Galah Creek
DTRC0292
     287115       7817250
2m @ 30.6% from 14m

Galah Creek
DTRC0292A
     287130       7817200
3m @ 19.93% from 8m

Galah Creek
DTRC0294
     285800       7817500
2m @ 11.45% from 6m

Galah Creek
DTRC0294
     285800       7817500
2m @ 14.05% from 18m

Galah Creek
DTRC0295
     285900       7817500
4m @ 9.45% from 8m

Galah Creek
DTRC0295
     285900       7817500
2m @ 9.05% from 19m

Galah Creek
DTRC0297
     286200       7817500
3m @ 12.66% from 3m

Galah Creek
DTRC0297
     286200       7817500
3m @ 8.44% from 8m

Galah Creek
DTRC0299
     286500       7817500
2m @ 11.84% from 2m

Galah Creek
DTRC0300
     286700       7817500   3m @ 28.53% from 7m inc 2m @ 30.4% from 7m
Galah Creek
DTRC0302
     287000       7817500   9m @ 16.31% from 6m inc 2m @ 28.4% from 7m
Galah Creek
DTRC0307
     285800       7817200
8m @ 11.21% from 16m

Galah Creek
DTRC0308
     285900       7817200
3m @ 13.98% from 8m

Galah Creek
DTRC0308
     285900       7817200
2m @ 15.4% from 18m

Galah Creek
DTRC0309
     286100       7817200
6m @ 14.21% from 16m

Galah Creek
DTRC0310
     286400       7817200
12m @ 12.46% from 14m

Galah Creek
DTRC0311
     286500       7817200
4m @ 11.54% from 16m

Galah Creek
DTRC0312
     286700       7817200
2m @ 11.83% from 10m

Galah Creek
DTRC0313
     286800       7817200
3m @ 16.86% from 6m

Galah Creek
DTRC0315
     287300       7817200
2m @ 19.38% from 14m

Galah Creek
DTRC0318
     285800       7816900
3m @ 8.43% from 0m

Galah Creek
DTRC0318
     285800       7816900
2m @ 13.05% from 6m

Galah Creek
DTRC0318
     285800       7816900
2m @ 8.85% from 13m

Galah Creek
DTRC0320
     286100       7816900
2m @ 16.52% from 13m

Galah Creek
DTRC0321
     286200       7816900
7m @ 14.89% from 12m

Galah Creek
DTRC0324
     286700       7816900
2m @ 10.81% from 10m

Galah Creek
DTRC0324
     286700       7816900
7m @ 14.85% from 14m

Galah Creek
DTRC0325
     286800       7816900
2m @ 15.68% from 12m

Galah Creek
DTRC0325
     286800       7816900
3m @ 17.13% from 19m

Galah Creek
DTRC0326
     287000       7816900
2m @ 20.4% from 7m

Galah Creek
DTRC0327
     287100       7816900
2m @ 19.3% from 4m

Galah Creek
DTRC0330
     285800       7816600
4m @ 11.86% from 0m

Galah Creek
DTRC0331
     285900       7816600
2m @ 15.28% from 9m

Galah Creek
DTRC0332
     286100       7816600
3m @ 14.27% from 4m

Galah Creek
DTRC0336
     286800       7816600
3m @ 13.57% from 18m

Galah Creek
DTRC0338
     287100       7816600   3m @ 21.32% from 15m inc 2m @ 26.8% from 16m
Galah Creek
DTRC0339
     287300       7816600
2m @ 27.65% from 11m

Galah Creek
DTRC0340
     287400       7816600
5m @ 14.2% from 0m

Galah Creek





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0342
     285800       7816300
3m @ 16.69% from 5m

Galah Creek
DTRC0343
     285900       7816300
3m @ 14.02% from 5m

Galah Creek
DTRC0344
     286100       7816300
3m @ 17.68% from 8m

Galah Creek
DTRC0346
     286400       7816300
2m @ 17.1% from 9m

Galah Creek
DTRC0347
     286500       7816300
6m @ 11.58% from 1m

Galah Creek
DTRC0350
     287000       7816300
3m @ 18.33% from 15m

Galah Creek
DTRC0352
     287300       7816300   4m @ 28.39% from 13m inc 3m @ 34.47% from 13m
Galah Creek
DTRC0359
     286400       7816000
4m @ 14.83% from 8m

Galah Creek
DTRC0360
     286500       7816000
4m @ 10.74% from 4m

Galah Creek
DTRC0360
     286500       7816000
2m @ 9.64% from 14m

Galah Creek
DTRC0363
     287000       7816000
2m @ 16.68% from 0m

Galah Creek
DTRC0364
     287100       7816000
4m @ 21.52% from 0m

Galah Creek
DTRC0368
     286300       7817400
9m @ 10.79% from 13m

Galah Creek
DTRC0370
     286500       7817400
3m @ 23% from 16m

Galah Creek
DTRC0372
     286700       7817400
10m @ 10.57% from 2m

Galah Creek
DTRC0373
     286800       7817400
2m @ 13.19% from 16m

Galah Creek
DTRC0375
     287000       7817400
4m @ 14.25% from 5m

Galah Creek
DTRC0375
     287000       7817400   3m @ 21.92% from 12m inc 2m @ 28.2% from 13m
Galah Creek
DTRC0380
     286300       7817300
8m @ 9.47% from 21m

Galah Creek
DTRC0381
     286400       7817300
4m @ 9.91% from 14m

Galah Creek
DTRC0381
     286400       7817300
4m @ 12.49% from 21m

Galah Creek
DTRC0382
     286500       7817300
13m @ 15.96% from 12m

Galah Creek
DTRC0383
     286600       7817300
4m @ 10.97% from 11m

Galah Creek
DTRC0383
     286600       7817300
2m @ 13.2% from 20m

Galah Creek
DTRC0384
     286700       7817300   8m @ 15.29% from 13m inc 2m @ 34.75% from 19m
Galah Creek
DTRC0385
     286800       7817300
2m @ 21.7% from 13m

Galah Creek
DTRC0386
     286900       7817300
3m @ 8.49% from 11m

Galah Creek
DTRC0387
     287000       7817300   3m @ 21.49% from 7m inc 2m @ 28.05% from 8m
Galah Creek
DTRC0388
     287100       7817300
2m @ 20.2% from 6m

Galah Creek
DTRC0389
     287200       7817300
2m @ 15.53% from 14m

Galah Creek
DTRC0392
     286300       7817100
4m @ 10.73% from 11m

Galah Creek
DTRC0392
     286300       7817100
2m @ 9.39% from 19m

Galah Creek
DTRC0393
     286400       7817100
5m @ 13.66% from 5m

Galah Creek
DTRC0394
     286500       7817100
3m @ 16.1% from 19m

Galah Creek
DTRC0396
     286700       7817100
2m @ 13.49% from 5m

Galah Creek
DTRC0396
     286700       7817100
2m @ 17.93% from 10m

Galah Creek
DTRC0396
     286700       7817100
2m @ 20.93% from 16m

Galah Creek
DTRC0397
     286800       7817100
5m @ 14.62% from 15m

Galah Creek
DTRC0398
     286900       7817100
2m @ 16.52% from 0m

Galah Creek





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0398
     286900       7817100
2m @ 14.51% from 16m

Galah Creek
DTRC0399
     287000       7817100
3m @ 15.88% from 3m

Galah Creek
DTRC0401
     287200       7817100
2m @ 15.09% from 13m

Galah Creek
DTRC0405
     286400       7817000
2m @ 9.35% from 7m

Galah Creek
DTRC0410
     286900       7817000
3m @ 17.35% from 19m

Galah Creek
DTRC0413
     287200       7817000
2m @ 17.75% from 1m

Galah Creek
DTRC0416
     285800       7816800
2m @ 12.42% from 3m

Galah Creek
DTRC0416
     285800       7816800
4m @ 11.49% from 9m

Galah Creek
DTRC0418
     286400       7816800
5m @ 13.42% from 6m

Galah Creek
DTRC0419
     286500       7816800
2m @ 22.7% from 4m

Galah Creek
DTRC0419
     286500       7816800
2m @ 24.1% from 12m

Galah Creek
DTRC0421
     286700       7816800
2m @ 16.82% from 23m

Galah Creek
DTRC0422
     286800       7816800
2m @ 16.63% from 17m

Galah Creek
DTRC0423
     286900       7816800
2m @ 10.1% from 18m

Galah Creek
DTRC0424
     287000       7816800
3m @ 10.19% from 0m

Galah Creek
DTRC0424
     287000       7816800
4m @ 17.17% from 6m

Galah Creek
DTRC0425
     287100       7816800
4m @ 17% from 4m

Galah Creek
DTRC0429
     285800       7816700
3m @ 14.45% from 0m

Galah Creek
DTRC0430
     286800       7816700
5m @ 9.31% from 12m

Galah Creek
DTRC0431
     286900       7816700
10m @ 18.34% from 3m

Galah Creek
DTRC0432
     287000       7816700   3m @ 21.2% from 1m inc 2m @ 26.4% from 2m
Galah Creek
DTRC0433
     287100       7816700
2m @ 13.53% from 7m

Galah Creek
DTRC0434
     287200       7816700
2m @ 17.98% from 6m

Galah Creek
DTRC0438
     286800       7816500
4m @ 11.47% from 1m

Galah Creek
DTRC0438
     286800       7816500
3m @ 18.8% from 8m

Galah Creek
DTRC0440
     287000       7816500
4m @ 16.13% from 16m

Galah Creek
DTRC0441
     287100       7816500
4m @ 13.98% from 7m

Galah Creek
DTRC0441
     287100       7816500
6m @ 15.71% from 14m

Galah Creek
DTRC0442
     287200       7816500
4m @ 17.91% from 16m

Galah Creek
DTRC0444
     287400       7816500
4m @ 17.8% from 6m

Galah Creek
DTRC0445
     285800       7816400
3m @ 16.21% from 7m

Galah Creek
DTRC0446
     286800       7816400
4m @ 15.94% from 5m

Galah Creek
DTRC0447
     286900       7816400
3m @ 15.7% from 4m

Galah Creek
DTRC0449
     287100       7816400
2m @ 18.95% from 16m

Galah Creek
DTRC0450
     287200       7816400
6m @ 20.26% from 2m

Galah Creek
DTRC0451
     287300       7816400   5m @ 20.79% from 12m inc 2m @ 33.55% from 14m
Galah Creek
DTRC0452
     287400       7816400
3m @ 22.28% from 9m

Galah Creek
DTRC0461
     287100       7816200   4m @ 19.91% from 2m inc 2m @ 27.95% from 3m
Galah Creek
DTRC0462
     287200       7816200
5m @ 14.43% from 8m

Galah Creek





Hole_ID

Easting
(WGS 84)

Northing
(WGS 84)

Intercept P2O5 (%)
Area
DTRC0463
     287300       7816200   4m @ 35.92% from 11m inc 4m @ 35.92% from 11m
Galah Creek
DTRC0465
     286300       7816100
4m @ 21.86% from 0m

Galah Creek
DTRC0466
     286400       7816100
4m @ 15.74% from 7m

Galah Creek
DTRC0467
     286500       7816100
2m @ 13.63% from 4m

Galah Creek
DTRC0472
     287000       7816100
3m @ 16.28% from 4m

Galah Creek
DTRC0472
     287000       7816100   4m @ 20.91% from 12m inc 2m @ 31.35% from 13m
Galah Creek
DTRC0473
     287100       7816100
3m @ 13.43% from 9m

Galah Creek
DTRC0473
     287100       7816100
4m @ 11.8% from 15m

Galah Creek
DTRC0474
     287200       7816100
4m @ 11.16% from 16m

Galah Creek
DTRC0477
     286400       7815900
7m @ 11.22% from 0m

Galah Creek
DTRC0478
     286500       7815900
5m @ 13.02% from 2m

Galah Creek
DTRC0482
     286900       7815900
8m @ 14.82% from 0m

Galah Creek
DTRC0482
     286900       7815900
3m @ 14.05% from 11m

Galah Creek
DTRC0483
     287000       7815900
2m @ 13.36% from 4m

Galah Creek
DTRC0483
     287000       7815900
5m @ 16.69% from 12m

Galah Creek
DTRC0492
     286800       7815800
3m @ 12.13% from 0m

Galah Creek
DTRC0493
     286900       7815800
3m @ 9.92% from 0m

Galah Creek
DTRC0494
     287000       7815800
7m @ 12.25% from 0m

Galah Creek
DTRC0495
     287100       7815800
2m @ 19.7% from 5m

Galah Creek
DTRC0498
     287400       7815800
4m @ 15.54% from 6m

Galah Creek
DTRC0498
     287400       7815800
3m @ 12.82% from 18m

Galah Creek
